4-Piece Pin Wrench Set, Yamaha/Suzuki/SeaStar (300 Series) – 32/35/38/47mm

Remove trim, tilt and steering cylinder caps on Yamaha, Suzuki, Johnson and Evinrude outboards and SeaStar hydraulic steering, including Yamaha single-piston trim units. The K1018 has our 32mm, 35mm, 38mm and 47mm patented 300 Series pin wrenches with their pins, plus the Pin Wrench Sleeve. It replaces our original AMT0004, AMT0006, AMT0009 and AMT0052 wrenches.

The sleeve slides over the cylinder and wrench. Lower the outboard onto it and the motor's weight holds the wrench flat in the cap, so it can't kick out under a breaker bar and cheater pipe. Each wrench has a polished stainless steel body, a 1/2" square drive and pins rated to at least 200 ft-lb. Backed by the Marine Tech Tools lifetime warranty.

Reference part numbers: YB-06175-1A, YB-06175-2B, YB-06548

Fits These Motors

• Yamaha, Suzuki, Johnson and Evinrude outboards with Showa-built trim/tilt units, including Yamaha single-piston units
• SeaStar hydraulic steering cylinders

Not sure which one fits? Use the selector at the top of the trim/tilt wrench category page.

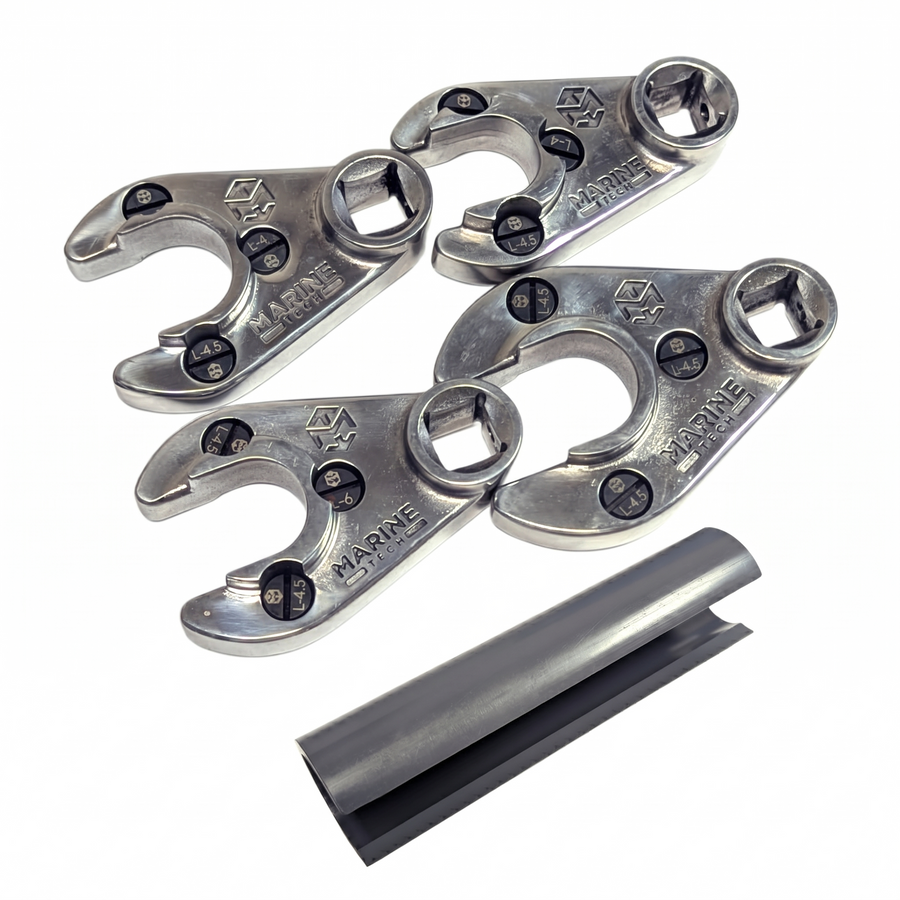

What's Included

• 32mm x 4mm Pin Wrench (AMT0306) - Yamaha F115–F150, Honda and Evinrude trim caps. Replaces AMT0006.
• 35mm x 6mm Pin Wrench (AMT0309) - Large Yamaha and Suzuki trim caps. Replaces AMT0009.
• 38mm x 4mm Pin Wrench (AMT0304) - Yamaha V6 tilt caps and SeaStar gland nuts. Replaces AMT0004.
• 47mm x 4.5mm Pin Wrench (AMT0352) - Yamaha single-piston trim caps. Replaces AMT0052.
• Pin Wrench Sleeve (AMT0170) - Holds the wrench in the cap under the motor's weight.

Works With

• Trim and Tilt Impact Tool (AMT0012) - for caps a pin wrench can't break loose
• 3-Piece Pin Wrench Master Set (K1001) - this set without the 47mm wrench

Each wrench and the sleeve are also sold on their own.
