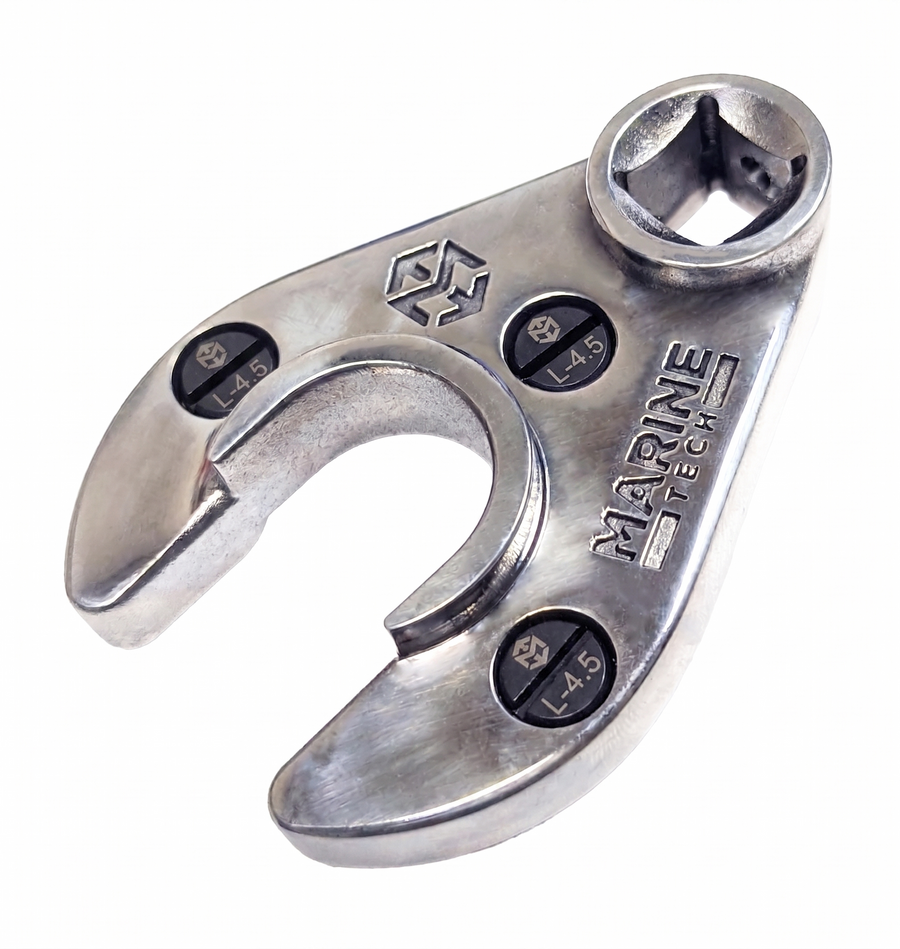

47mm x 4.5mm Pin Wrench for Yamaha Single-Piston Trim Caps – Replaces AMT0052

Remove and install the 47mm caps on Yamaha single-piston trim and tilt units, such as the F90, and large Suzuki caps that use a 47mm pin stance. The AMT0352 replaces our original AMT0052.

The AMT0352 is part of our patented 300 Series. Its hex body fits the Pin Wrench Sleeve (AMT0170): slide the sleeve over the wrench, lower the outboard onto it, and the motor's weight holds the wrench flat in the cap so it can't kick out, even with a breaker bar and cheater pipe. The body is polished stainless steel with a 1/2" square drive, and the pins are rated to at least 200 ft-lb. Backed by the Marine Tech Tools lifetime warranty.

Reference part numbers: AMT0052

Fits These Motors

• Yamaha outboards with single-piston trim/tilt units, including the F90
• Suzuki outboards with 47mm trim/tilt caps

Not sure which one fits? Use the selector at the top of the trim/tilt wrench category page.

Specifications

• Pin stance: 47mm
• Pins: six L-4.5mm, replaceable
• Drive: 1/2" square
• Torque rating: 200 ft-lb minimum
• Body: polished stainless steel

Works With

• Pin Wrench Sleeve (AMT0170) — locks the wrench in the cap
• Replacement Pins, L-4.5mm, set of 6 (AMT0176)
• 4-Piece Pin Wrench Master Set (K1018) — includes this wrench
