Retaining Ring Wrench and Handle for Yamaha 225–300hp – Replaces YB-06677

Remove and install the bearing carrier retaining ring on Yamaha 225–300hp outboards from 2010 on. Replaces Yamaha ring nut wrench YB-06677.

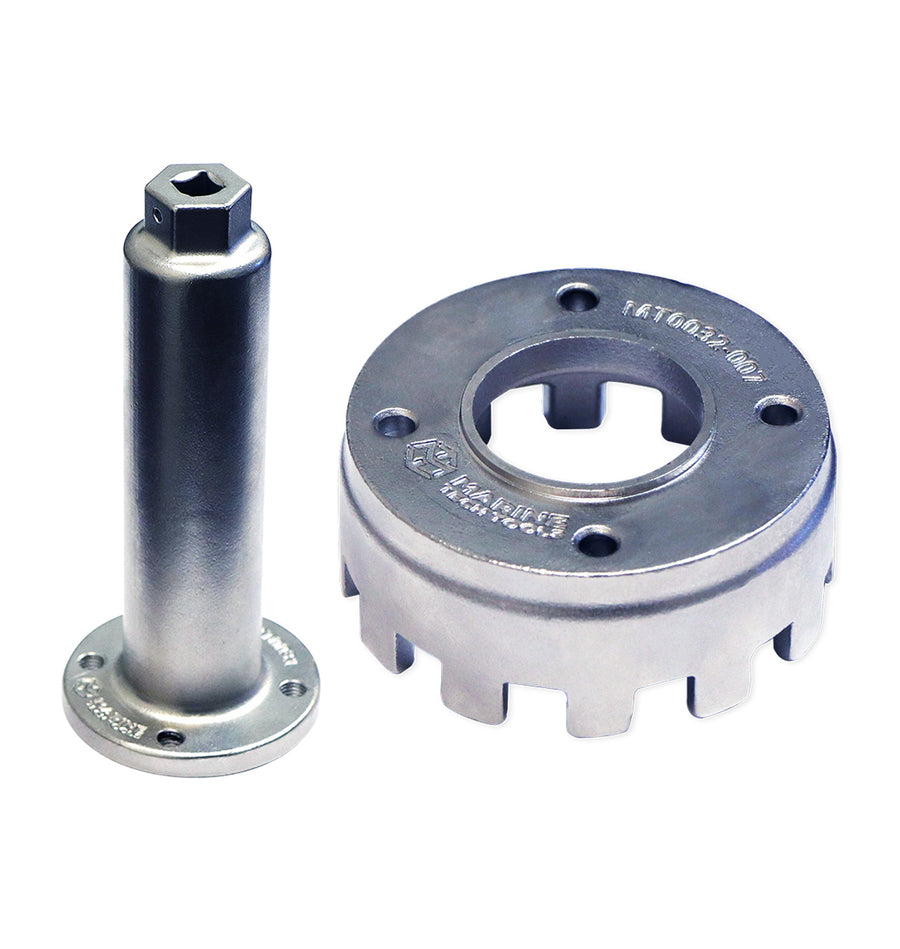

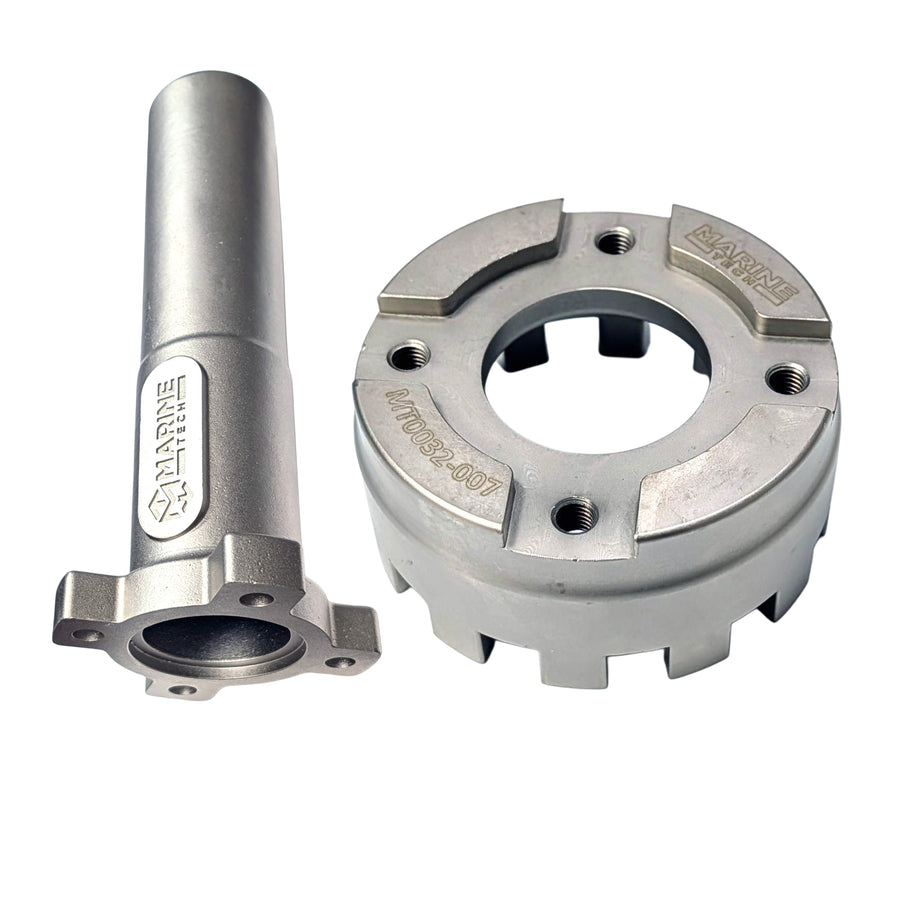

K1014 is a two-piece kit, a 99mm OD, 12-tooth wrench head and the handle that drives it, both nickel-plated steel for corrosion and wear resistance. Backed by the Marine Tech Tools lifetime warranty.

Reference part numbers: YB-06677, YB-06578

Fits These Motors

• Yamaha 225–300hp outboards (2010 and newer)
• Suzuki DF350

Fits These Parts

• Yamaha retaining ring 6CB-45384-00
• Suzuki retaining ring 56122-98L00

Not sure which one fits? Use the Retaining Ring Wrench Finder on our lower unit tools page.

What's Included

• Retaining Ring Wrench head, 99mm OD, 12-tooth (AMT0032-007) - Cut for the 99mm, 12-tooth retaining ring on Yamaha 225–300hp (2010 on) and the Suzuki DF350. Also sold on its own.
• Retaining Ring Wrench Handle (AMT0031) - Slips over the prop shaft and takes a 1/2" square drive ratchet, breaker bar or impact gun. Drives every AMT0032 head, so you can add heads for other motors later.

Works With

• Lower Retaining Ring Wrench Set (K1003)
