99mm 12-Tooth Retaining Ring Wrench Head, Yamaha 225–300hp – YB-06677

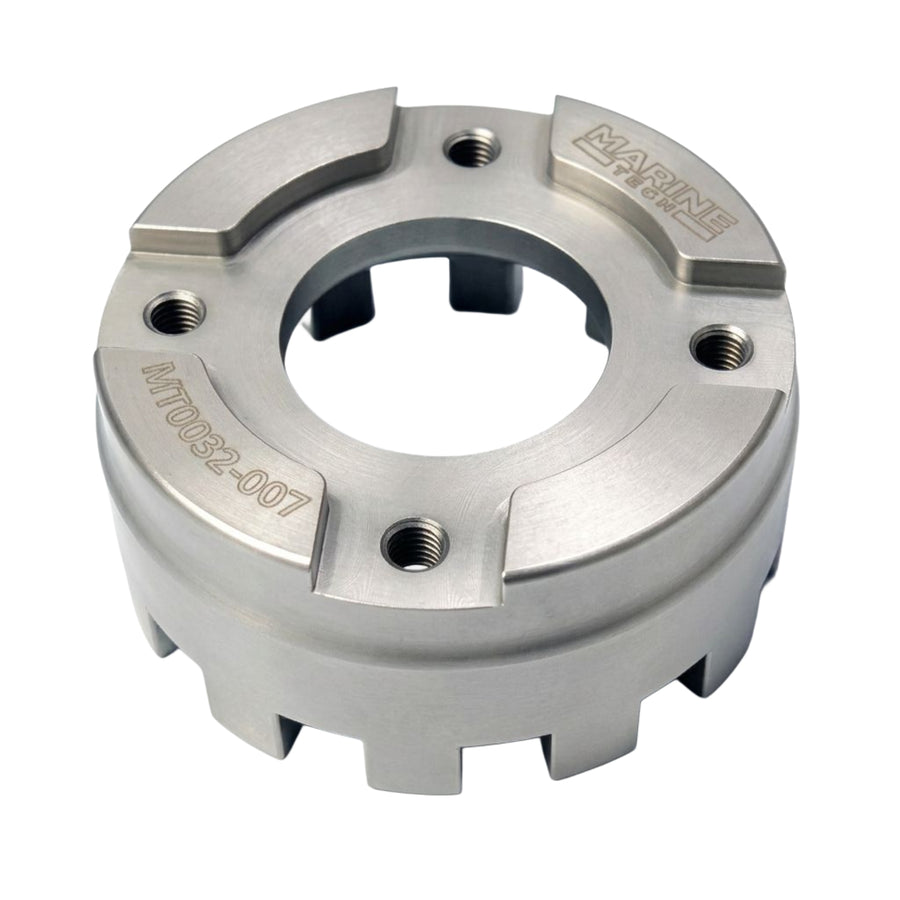

Remove and install the bearing carrier retaining ring on Yamaha 225–300hp outboards from 2010 on and the Suzuki DF350. The AMT0032-007 is a 99mm, 12-tooth retaining ring wrench head that mounts to the Retaining Ring Wrench Handle (AMT0031), which slips over the prop shaft and takes a 1/2" square drive. The patent-pending spline drive carries the load through the splines, not the bolts. Nickel-plated steel for corrosion and wear resistance. Backed by the Marine Tech Tools lifetime warranty.

Reference part numbers: YB-06677, YB-06578

Fits These Motors

• Yamaha 225–300hp outboards (2010 and newer)
• Suzuki DF350

Fits These Parts

• Yamaha retaining ring 6CB-45384-00
• Suzuki retaining ring 56122-98L00

Not sure which one fits? Use the Retaining Ring Wrench Finder on our lower unit tools page.

Specifications

• Outside diameter: 99mm
• Teeth: 12
• Drive: AMT0031 handle (1/2" square)
• Material: nickel-plated steel

Works With

• Retaining Ring Wrench Handle (AMT0031) — required, sold separately
• Retaining Ring Wrench and Handle for Yamaha 225–300hp (K1014) — this head plus the handle
• Lower Retaining Ring Wrench Set (K1003) — includes this head
