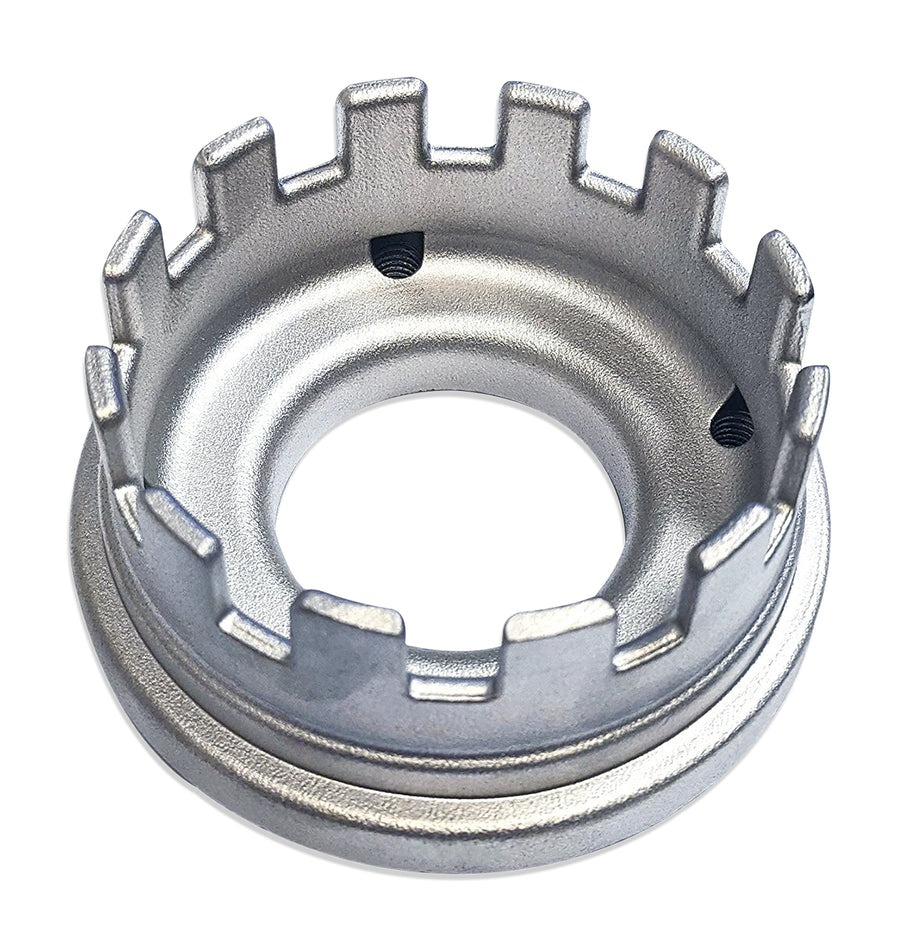

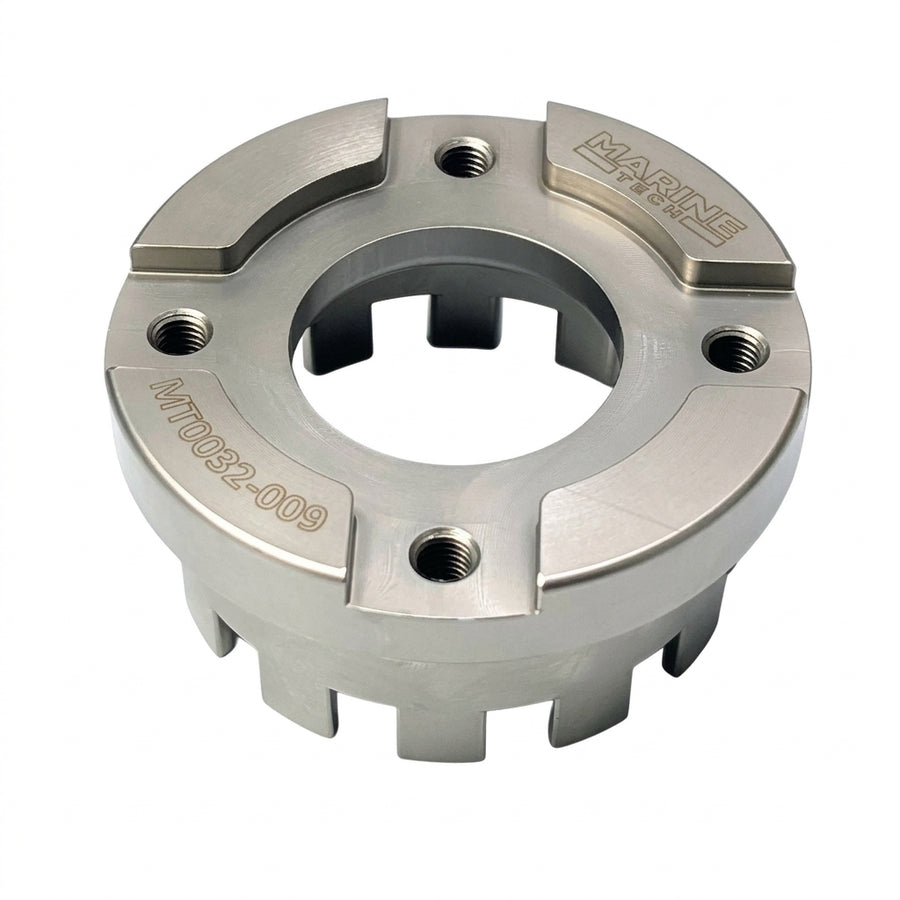

Retaining Ring Wrench Head, 83mm 12-Tooth, for Suzuki DF60, DF70, DT90, DT100

Remove and install the bearing carrier retaining ring on Suzuki DF60, DF70, DT90 and DT100 gearcases. The AMT0032-009 is an 83mm, 12-tooth retaining ring wrench head that mounts to the Retaining Ring Wrench Handle (AMT0031), which slips over the prop shaft and takes a 1/2" square drive. The patent-pending spline drive carries the load through the splines, not the bolts. Nickel-plated steel for corrosion and wear resistance. Backed by the Marine Tech Tools lifetime warranty.

Fits These Motors

• Suzuki DF60, DF70, DT90 and DT100

Fits These Parts

• Suzuki retaining ring 56122-87E00

Not sure which one fits? Use the Retaining Ring Wrench Finder on our lower unit tools page.

Specifications

• Outside diameter: 83mm
• Teeth: 12
• Drive: AMT0031 handle (1/2" square)
• Material: nickel-plated steel

Works With

• Retaining Ring Wrench Handle (AMT0031) - required, sold separately
• Lower Retaining Ring Wrench Set (K1003) - includes this head
