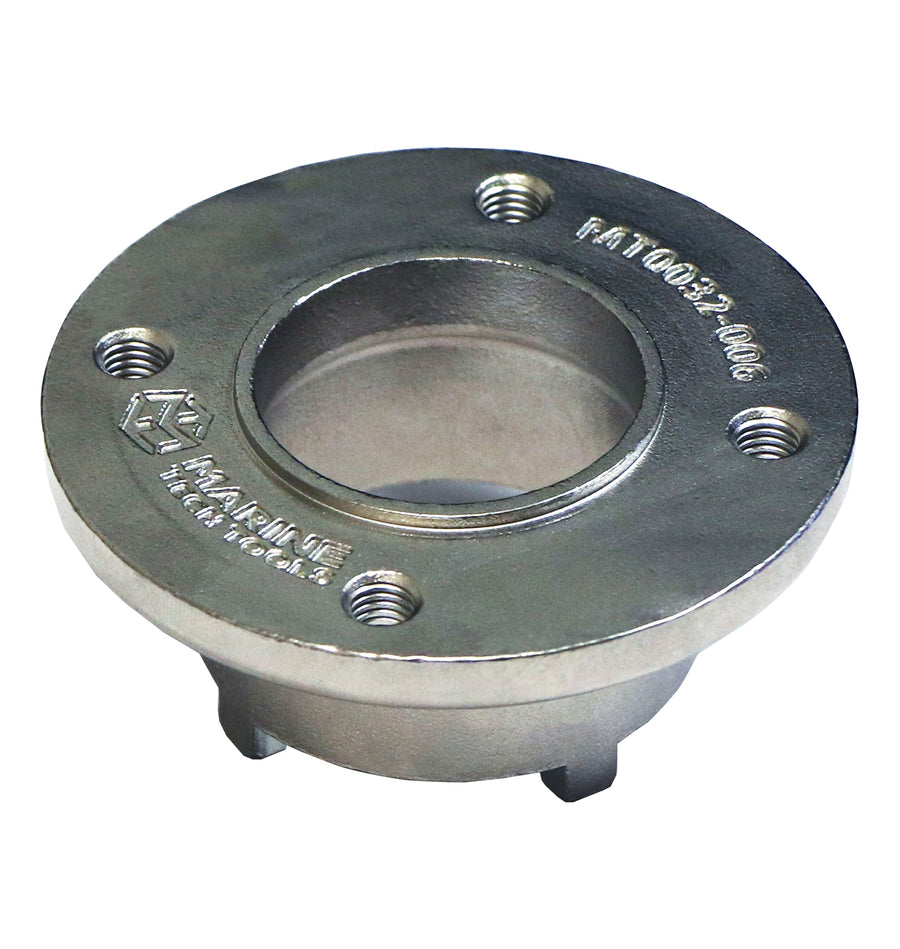

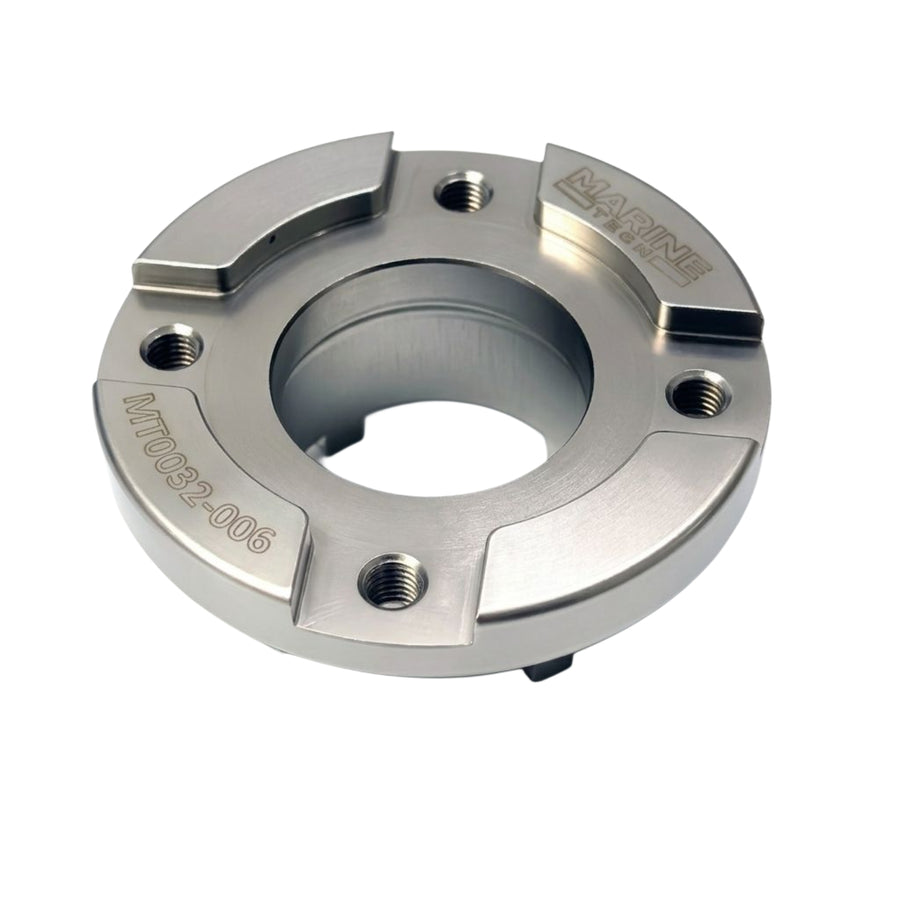

Retaining Ring Wrench Head, 61mm 4-Tooth, for Yamaha 25–30hp – Replaces YB-06075

Remove and install the bearing carrier retaining ring on Yamaha 25–30hp outboards from 1984 to 2000. The AMT0032-006 is a 61mm, 4-tooth retaining ring wrench head that mounts to the Retaining Ring Wrench Handle (AMT0031), which slips over the prop shaft and takes a 1/2" square drive. The patent-pending spline drive carries the load through the splines, not the bolts. Nickel-plated steel for corrosion and wear resistance. Backed by the Marine Tech Tools lifetime warranty.

Reference part numbers: YB-06075

Fits These Motors

• Yamaha 25–30hp outboards (1984–2000)

Fits These Parts

• Yamaha retaining ring 664-45384-00

Not sure which one fits? Use the Retaining Ring Wrench Finder on our lower unit tools page.

Specifications

• Outside diameter: 61mm
• Teeth: 4
• Drive: AMT0031 handle (1/2" square)
• Material: nickel-plated steel

Works With

• Retaining Ring Wrench Handle (AMT0031) - required, sold separately
• Retaining Ring Wrench and Handle for Yamaha 25–30hp (K1016) - this head plus the handle
• Lower Retaining Ring Wrench Set (K1003) - includes this head
