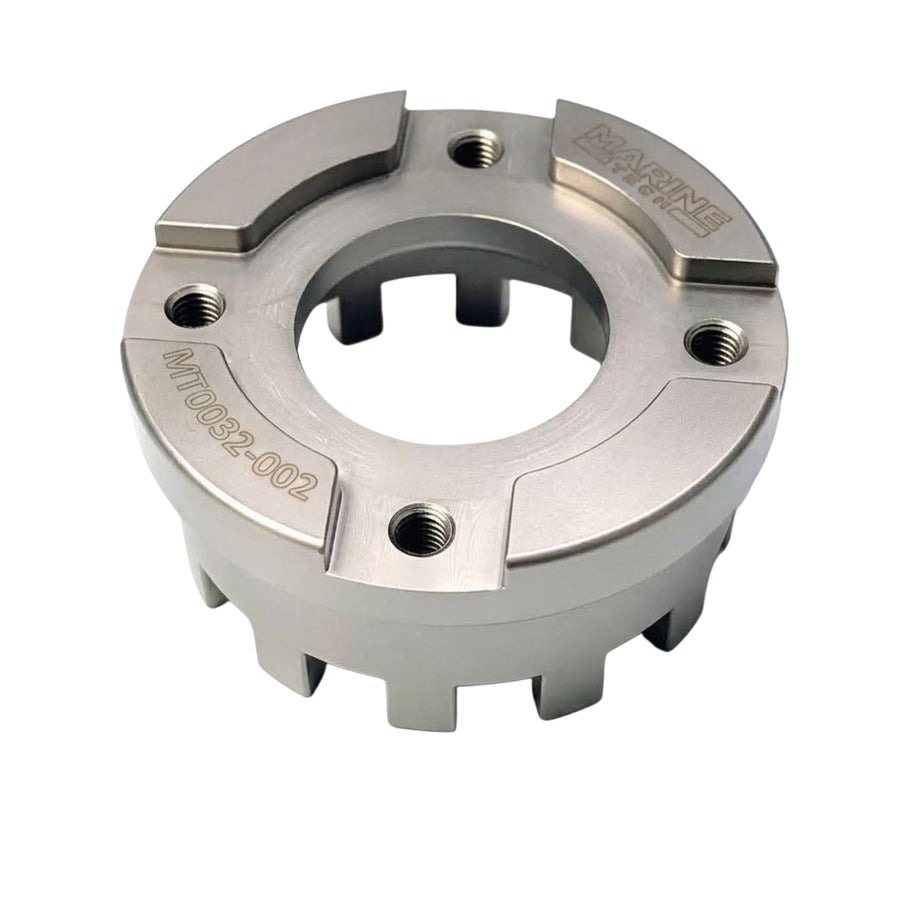

87mm 12-Tooth Retaining Ring Wrench Head for Yamaha – Replaces YB-34447

Remove and install the bearing carrier retaining ring on Yamaha outboards that use 688-series rings. The AMT0032-002 is an 87mm, 12-tooth retaining ring wrench head that mounts to the Retaining Ring Wrench Handle (AMT0031), which slips over the prop shaft and takes a 1/2" square drive. The patent-pending spline drive carries the load through the splines, not the bolts. Nickel-plated steel for corrosion and wear resistance. Backed by the Marine Tech Tools lifetime warranty.

Reference part numbers: YB-34447

Fits These Motors

• Yamaha outboards with the retaining rings listed below

Fits These Parts

• Yamaha retaining rings 688-45384-00, 688-45384-01, 688-45384-02 and 697-45384-02

Not sure which one fits? Use the Retaining Ring Wrench Finder on our lower unit tools page.

Specifications

• Outside diameter: 87mm
• Teeth: 12
• Drive: AMT0031 handle (1/2" square)
• Material: nickel-plated steel

Works With

• Retaining Ring Wrench Handle (AMT0031) — required, sold separately
• Lower Retaining Ring Wrench Set (K1003) — includes this head
• 85mm Head for Older Mercury (AMT0032-0021) — when this head is too large
