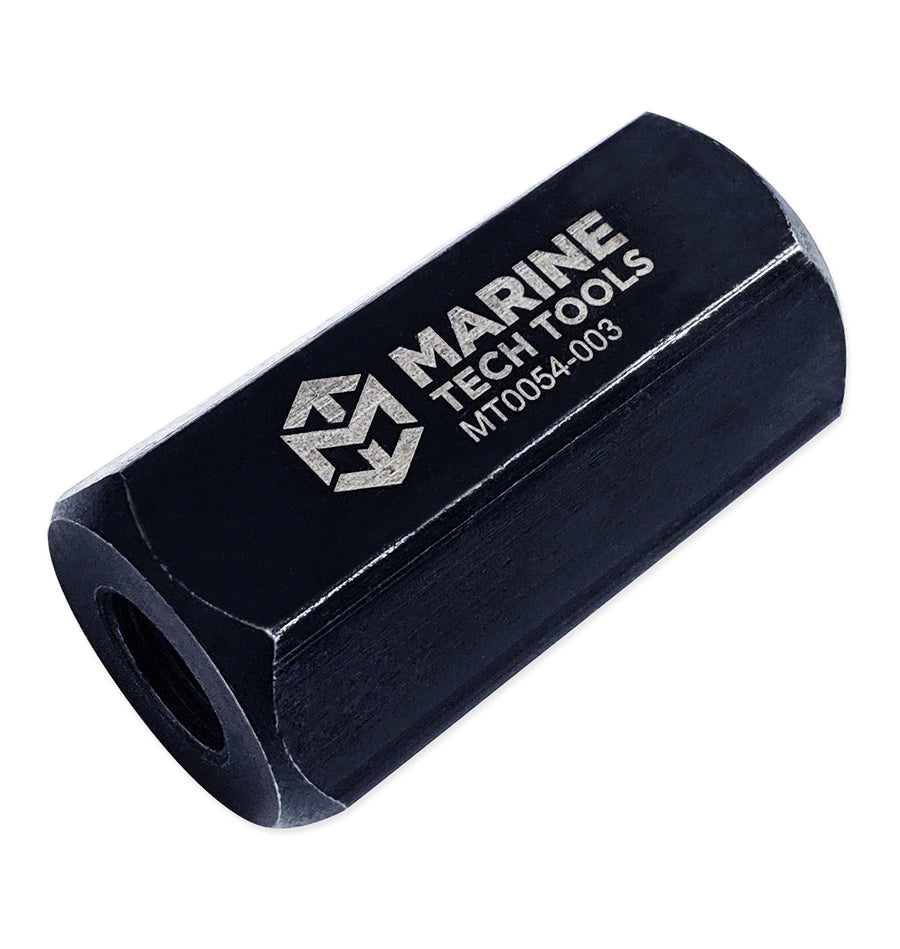

Prop Shaft & Bearing Housing Remover for Mercury 25–60hp and Johnson/Evinrude

Pull a stuck bearing carrier with a slide hammer instead of a bearing carrier puller. The AMT0054-003 threads onto the prop shaft in place of the prop nut on Mercury 25–60hp and Johnson and Evinrude 40–140hp outboards, and a standard automotive slide hammer (5/8-18 UNF) threads into the other end, so each hit draws the carrier and prop shaft straight out of the gearcase. Works on standard and counter-rotating lower units. Black oxide coated steel. Backed by the Marine Tech Tools lifetime warranty.

Fits These Motors

• Mercury and Mariner 30–60hp outboards, 2-stroke and 4-stroke
• Mercury 25hp 4-stroke (2006 and newer)
• Johnson and Evinrude 2-stroke 40–140hp (1988 and newer)

Fits These Parts

• Mercury prop nut 11-69578Q1
• Johnson/Evinrude prop nut 314503

Specifications

• Slide hammer thread: 5/8-18 UNF
• Finish: black oxide coated steel

Other motors take a different size. See every prop shaft and bearing housing remover on our lower unit pullers page.
