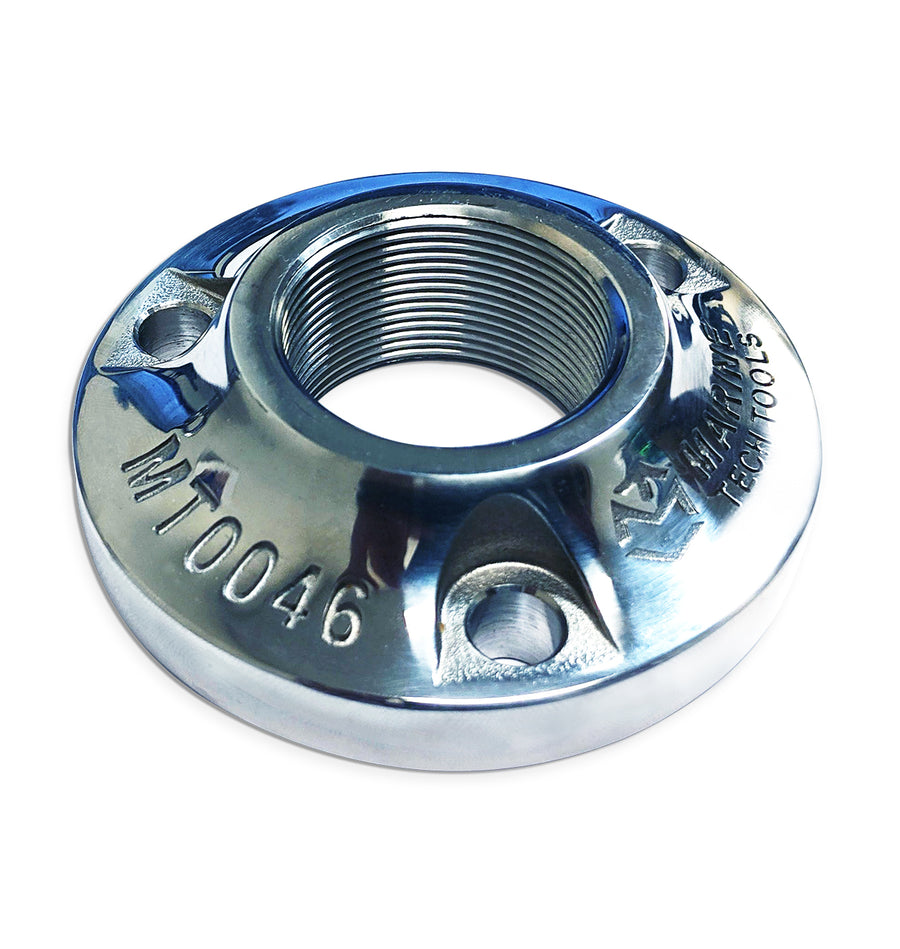

Lift OMC and BRP outboards that have no built-in lifting eye, and pull the flywheel on Yamaha F75, F90, F150 and 3.3L four-strokes. The AMT0046 bolts to the flywheel, then takes the Universal Lifting Ring (AMT0022) for lifting or the AMT0023 Flywheel Puller for flywheel removal and timing belt work.
It comes with three sets of screws for different flywheels. Use the right screws: the short screws do not give enough thread engagement in a 90° V6 flywheel, and the motor could fall. The long screws on 40–90hp motors will hit the stator under the flywheel. Every Marine Tech Tools lifting adapter accepts the same Universal Lifting Ring (AMT0022), so one ring and the right adapter cover Mercury, Yamaha, OMC, BRP and Evinrude G2 outboards. High-strength forged stainless steel. Backed by the Marine Tech Tools lifetime warranty.
Fits These Motors
- Johnson, Evinrude and BRP (OMC) outboards without built-in lifting eyes, including E-TEC
- Yamaha F75, F90, F150 and LF150 (flywheel removal)
- Yamaha 3.3L V6
Specifications
- Hardware: 3 long 5/16"-24 x 1-3/4" screws, 3 short 5/16"-24 x 1-1/8" screws, 3 M8 x 1.25 x 25mm grade 12.9 screws
- Working load: 1,000 lb with AMT0022
- Material: forged stainless steel
Works With
- Universal Lifting Ring (AMT0022) - for lifting
- Mercury and Yamaha Flywheel Puller (AMT0023) - for flywheel removal
- Yamaha F75–F150 and 3.3L Flywheel Puller Kit (K1019)
- Mercury Flywheel Puller Kit (K1024)
- Yamaha Lifting Kit (K1005)
- Universal Lifting System with Flywheel Puller (K1007)
Does not fit 60° V4 and V6 OMC motors that lift from the crankshaft.
