Learn More From Marine Tech
Marine Tech’s 2022 Trim/Tilt Wrenches
Posted: March 07, 2022

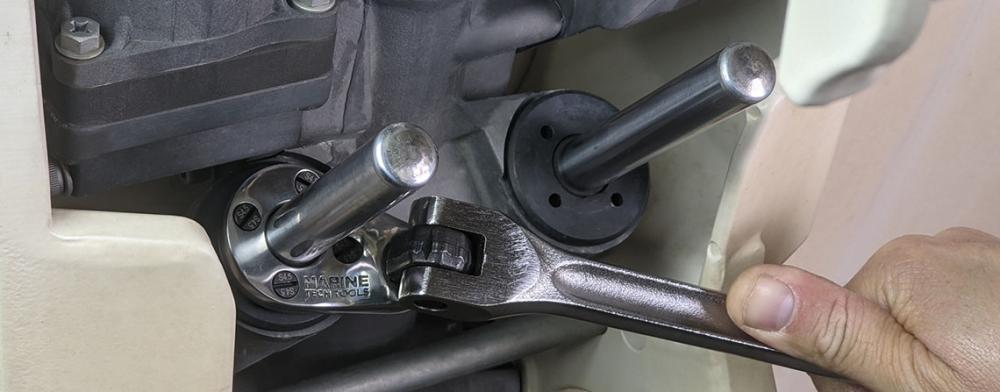

Trim and tilt end caps can be difficult and annoying to remove. We carry a variety of pin wrenches and other solutions to help make your job a little easier. Our wrenches and pins are designed to be stronger than average for lasting quality and efficiency.
Yamaha Trim/Tilt Wrenches
Check out these options for removing Yamaha trim and tilt end caps. Replacement pins are also available at an additional cost.
PIN WRENCH - 32MM x 4MM (SKU #: AMT0006): $62.99
This 32mm pin wrench is compatible with trim caps on all trim/tilt units manufactured by SHOWA, including Yamaha. The kit includes six S-4mm pins and six S4.5mm pins.
PIN WRENCH - 38MM X 4MM (SKU #: AMT0004): $62.99
This 38mm pin wrench can be used to remove trim and tilt caps on all Four Stroke Yamaha V6, along with various other types of tilt caps and SeaStar steering cylinders. Note that it is not compatible with VMAX. The kit includes six L-4mm pins.
PIN WRENCH - 35MM X 6MM (SKU #: AMT0009): $62.99
This 35mm pin wrench is compatible with all trim and tilt units manufactured by SHOWA, including Yamaha. The kit includes three L-6mm pins.
PIN WRENCH - 47MM X 4.5MM (SKU #: AMT0052): $62.99
This 47mm pin wrench is compatible with tilt seals on F40-F115Hp Yamaha Outboards. The kit includes six S-4.5mm pins.
YAMAHA TRIM/TILT PIN WRENCH SET (SKU #: K1001): $167.00
This trim/tilt pin wrench set includes AMT0004 (38mm), AMT0006 (32mm), and AMT0009 (35mm) pin wrenches. The wrenches are compatible with all trim and tilt end caps by Yamaha, as well as Suzuki, Johnson, and Evinrude.
TILT PISTON WRENCH (SKU #: AMT0055): $47.00
This tilt piston wrench is made to easily and safely remove the tilt piston from 4 stroke V6 Yamaha Outboards. The kit includes four L-7mm pins.
MARINE TRIM AND TILT IMPACT TOOL (SKU #: AMT0012): $29.00
Sometimes pin wrenches simply aren’t enough to remove seized trim and tilt end caps. This impact tool is a quick, destructive method to get the job done. It’s compatible with any standard air hammer (10mm shank). Note that the end cap will NOT be re-usable after removal.
Mercury Trim/Tilt Wrenches
Check out these options for removing Mercury trim and tilt end caps. Replacement pins are also available at an additional cost.
PIN WRENCH - 31MM X 5MM (SKU #: AMT0021): $62.99
This 31mm pin wrench is compatible with Mercury optimax (3 Cylinder Trim Units). The kit includes six S-5mm pins.
MERCURY TRIM/TILT PIN WRENCH SET (SKU #: K1002): $197.00
This trim/tilt pin wrench set includes AMT0018 (40mm), AMT0019 (42mm), AMT0020 (46mm), and AMT0021 (31mm) pin wrenches. The wrenches are compatible with all current model trim and tilt units by Mercury, as well as various others.
PIN WRENCH - 40MM X 6MM (SKU #: AMT0018): $62.99
This 40mm pin wrench is compatible with Mercury 175-350Hp Verado Outboards. The kit includes three L-6mm pins.
PIN WRENCH - 42MM X 6MM (SKU #: AMT0019): $62.99
This 42mm pin wrench is compatible with Mercury Four Stroke 40-115 Outboards. The kit includes three L-6mm pins.
PIN WRENCH - 46MM X 6MM (SKU #: AMT0020): $62.99
This 46mm pin wrench is compatible with Mercury Four Stroke 150hp outboards and Mercury Optimax (3 Cylinder Trim Units). The kit includes three L-6mm pins.
Johnson Evinrude Trim/Tilt Wrenches
Check out these options for removing Johnson Evinrude trim and tilt end caps. Replacement pins are also available at an additional cost.
PIN WRENCH - 35MM X 6MM (SKU #: AMT0009): $62.99
This 35mm pin wrench is compatible with all trim and tilt units manufactured by SHOWA, including Johnson Evinrude. The kit includes three L-6mm pins.
PIN WRENCH - 38MM X 6MM (SKU #: K1010): $62.99
This 38mm pin wrench is compatible with Single Cylinder Evinrude E-TEC trim caps. The kit includes six L-6mm pins.
PIN WRENCH - 32MM x 4MM (SKU #: AMT0006): $62.99
This 32mm pin wrench is compatible with trim caps on all trim/tilt units manufactured by SHOWA, including Johnson Evinrude. The kit includes six S-4mm pins and six S4.5mm pins.
ALPHA 1 DRIVE SHAFT ADAPTER 91-56775T (SKU #: AMT0063): $26.00
This drive shaft adapter makes it easy to turn drive shafts on MC-I, R-MR, Alpha One, and Alpha One/Gen II drive units and outboards by providing a wrench surface.
Shop Marine Tech to Get the Job Done
Whatever your trim/tilt needs may be, we’re committed to helping you get the job done with as little frustration, time, and money spent as possible. We’re proud to offer a 100% money-back guarantee on your purchases and free shipping on all domestic orders.
