104mm 12-Tooth Retaining Ring Wrench Head, Yamaha F300/F350 – YB-06823

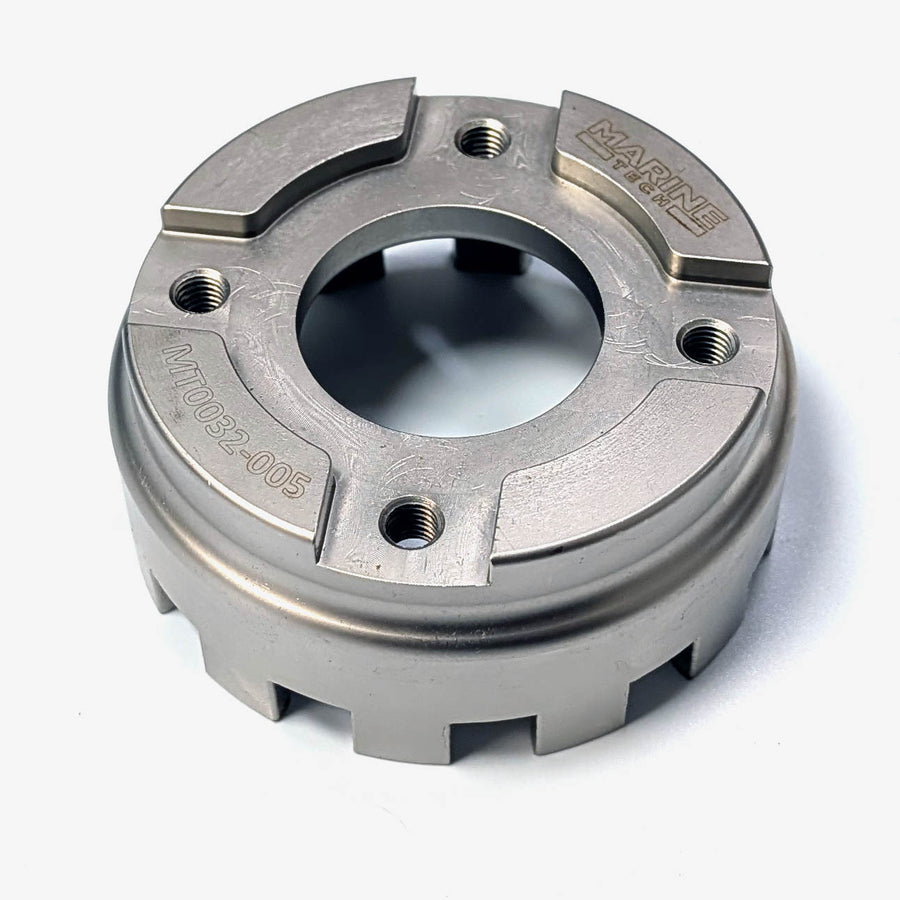

Remove and install the bearing carrier retaining ring on Yamaha F300 (2007–2009) and F350 outboards. The AMT0032-005 is a 104mm, 12-tooth retaining ring wrench head that mounts to the Retaining Ring Wrench Handle (AMT0031), which slips over the prop shaft and takes a 1/2" square drive. The patent-pending spline drive carries the load through the splines, not the bolts. Nickel-plated steel for corrosion and wear resistance. Backed by the Marine Tech Tools lifetime warranty.

Reference part numbers: YB-06823, 90890-06823, YB-06784

Fits These Motors

• Yamaha F300 (2007–2009)
• Yamaha F350

Fits These Parts

• Yamaha retaining ring 6AW-45384-00

Not sure which one fits? Use the Retaining Ring Wrench Finder on our lower unit tools page.

Specifications

• Outside diameter: 104mm
• Teeth: 12
• Drive: AMT0031 handle (1/2" square)
• Material: nickel-plated steel

Works With

• Retaining Ring Wrench Handle (AMT0031) - required, sold separately
• Retaining Ring Wrench and Handle for Yamaha F300/F350 (K1013) - this head plus the handle
• Lower Retaining Ring Wrench Set (K1003) - includes this head
