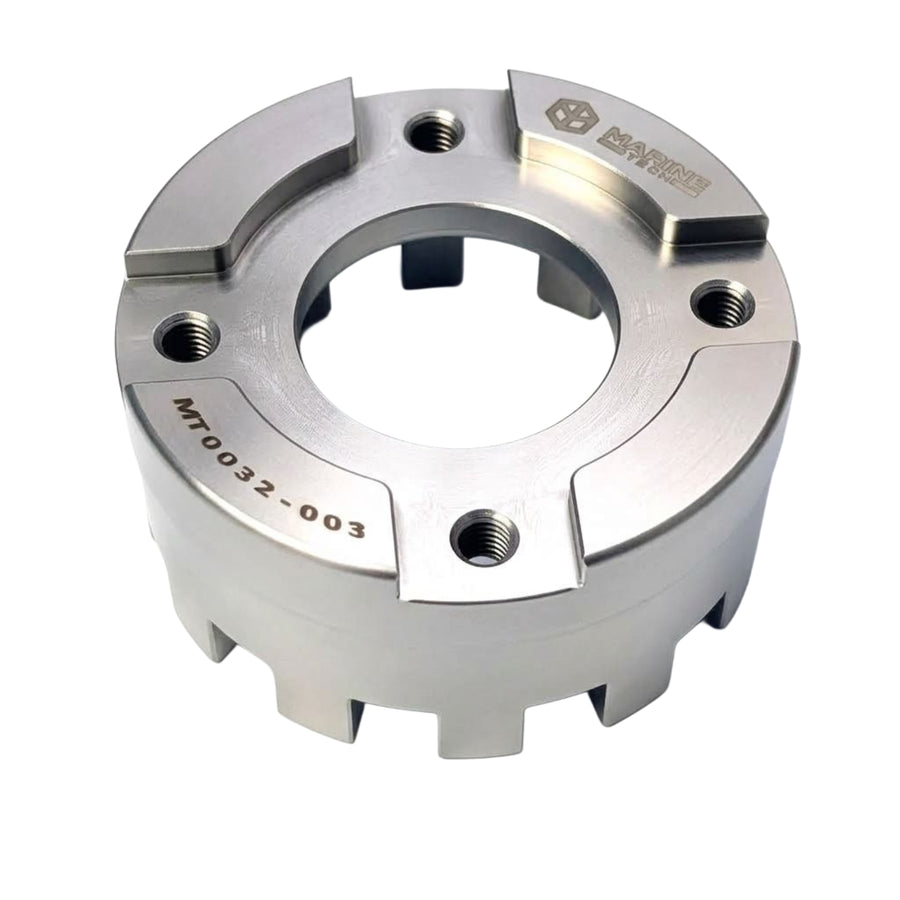

94mm 12-Tooth Retaining Ring Wrench Head for Mercury – Replaces 91-61069T

Remove and install the bearing carrier retaining ring on MerCruiser Alpha One and Bravo One drives, Mercury V6 outboards, and Yamaha and Suzuki outboards that use a 94mm ring. The AMT0032-003 is a 94mm, 12-tooth retaining ring wrench head that mounts to the Retaining Ring Wrench Handle (AMT0031), which slips over the prop shaft and takes a 1/2" square drive. The patent-pending spline drive carries the load through the splines, not the bolts. Nickel-plated steel for corrosion and wear resistance. Backed by the Marine Tech Tools lifetime warranty.

Reference part numbers: 91-61069T, 91-61069, YB-34447

Fits These Motors

• MerCruiser Pre-Alpha, Alpha One and Alpha One Gen II
• MerCruiser R, MR and MC-I (1982 and earlier R and MR; all years MC-I)
• MerCruiser Bravo One, TRS and Blackhawk (all years)
• Mercury and Mariner 2.5L and 3.0L V6 outboards, 135–250hp

Fits These Parts

• Mercury retaining rings 8M2011027 and 79448
• Yamaha retaining rings 6G5-45384-00, 6G5-45384-02 and 65N-45384-00
• Suzuki retaining ring 56122-93L00

Not sure which one fits? Use the Retaining Ring Wrench Finder on our lower unit tools page.

Specifications

• Outside diameter: 94mm
• Teeth: 12
• Drive: AMT0031 handle (1/2" square)
• Material: nickel-plated steel

Works With

• Retaining Ring Wrench Handle (AMT0031) — required, sold separately
• Bearing Carrier Retainer Wrench and Handle for Mercury (K1012) — this head plus the handle
• Lower Retaining Ring Wrench Set (K1003) — includes this head
